Key features

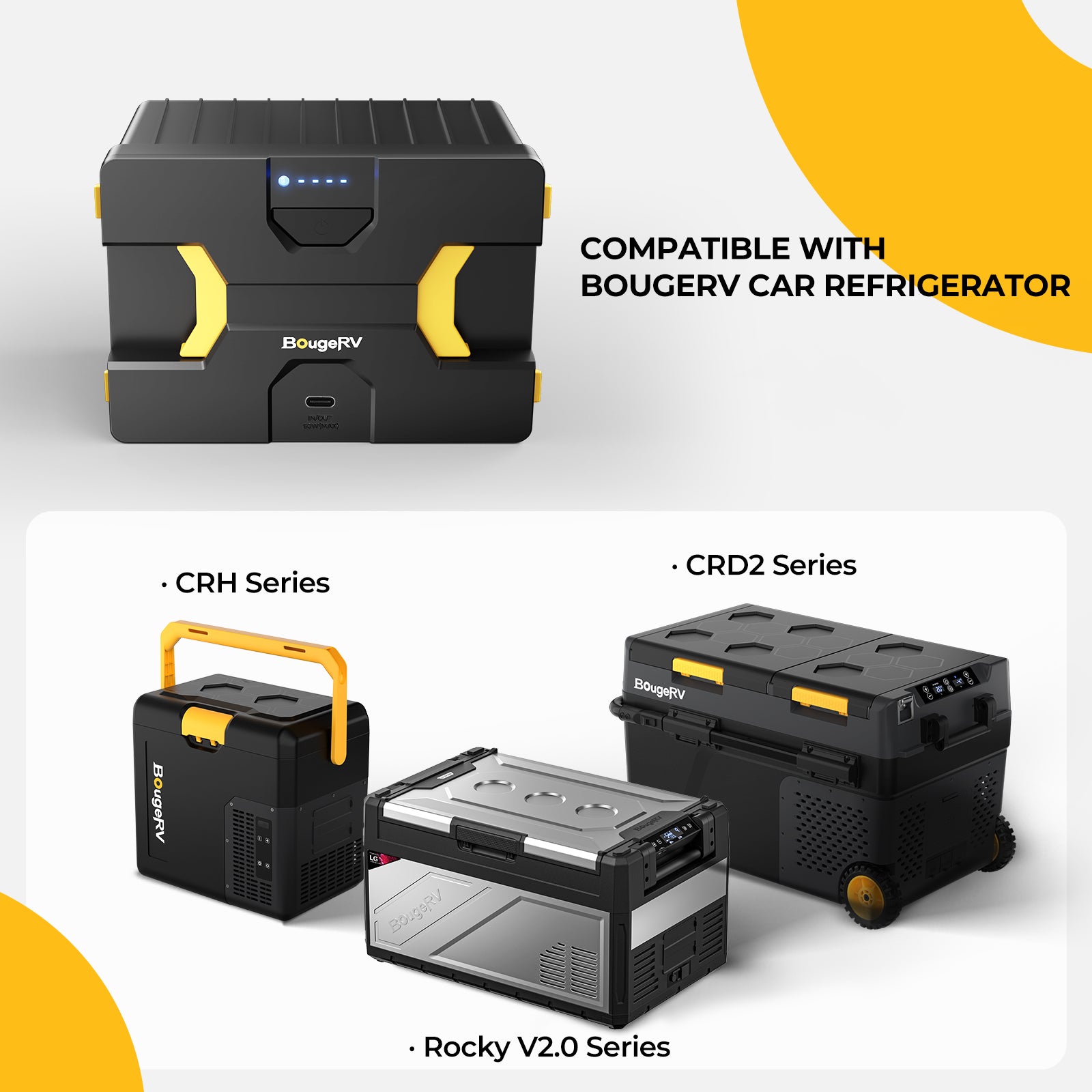

Unique design for BougeRV' refrigerator: This detachable battery is suitable for BougeRV CR35 CR45, CR55, E35, E45 and E55 refrigerators. It will be an excellent add-on if you already have BougeRV portable refrigerator.

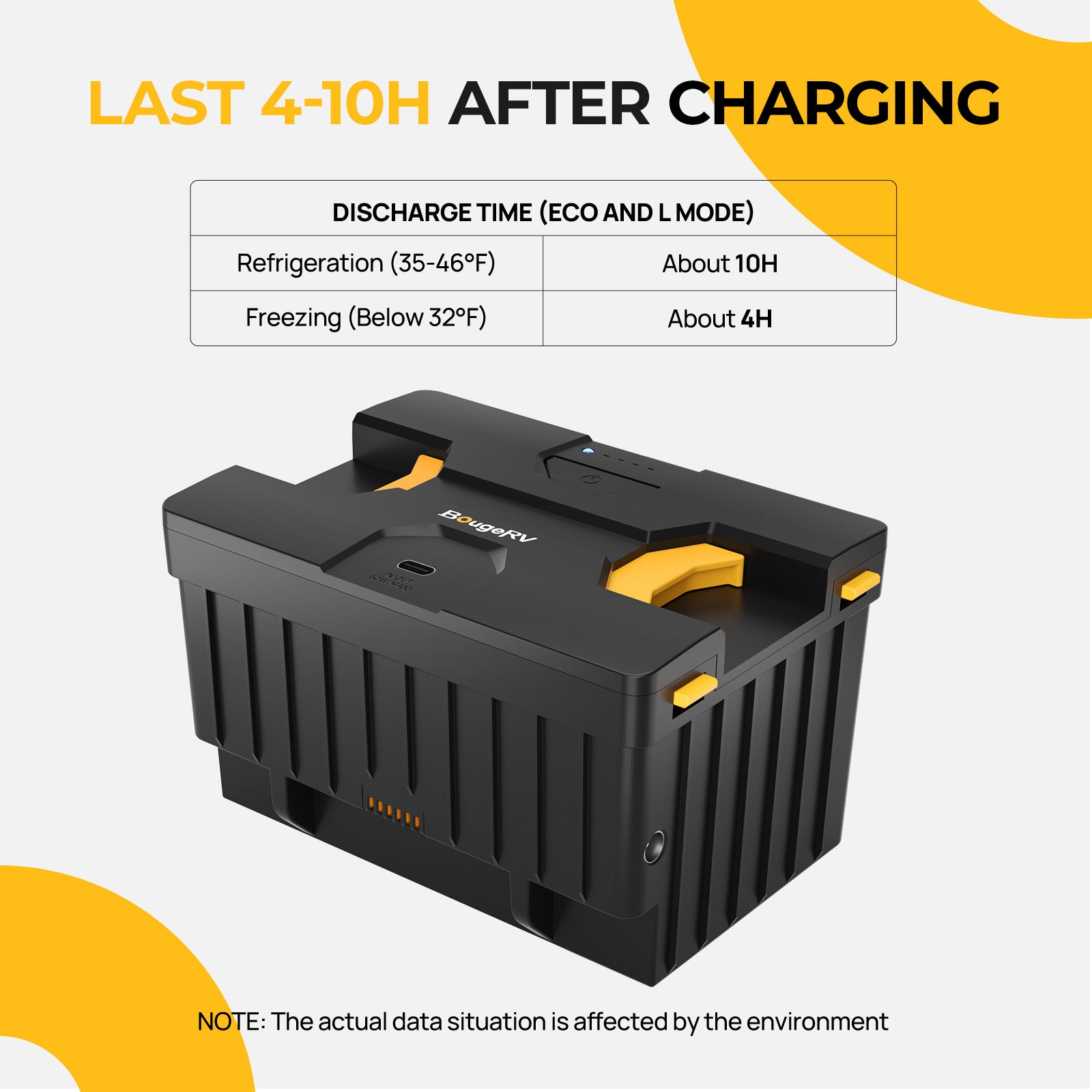

Large battery capacity&Long battery operation time: The battery capacity is 173wh/15600mah. When the working temperature is set at -20℃, it can be used for CR8 refrigerator for 6-8 hours and CR35-55 refrigerator for more than 4 hours. It will be essential for a trip.

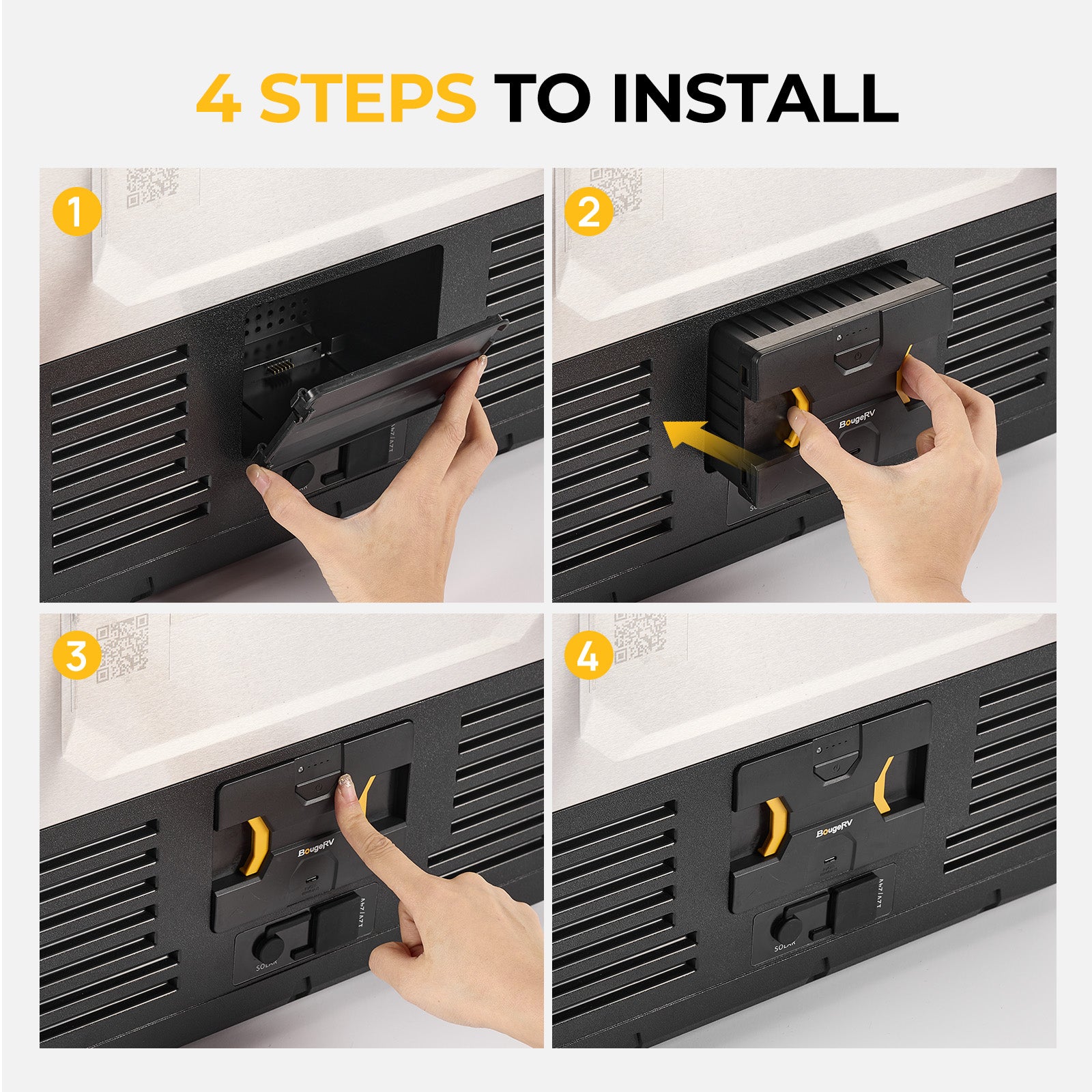

Improved design: The squeeze buckle design simplifies the installation and removal process, and the real-time battery power and voltage will be displayed on the control panel. Know how the detachable battery works at any time.
Simple switch: Long press the power button to turn on/off the battery. When charging, the power indicator will turn green. And it's simple to put the battery on and off.

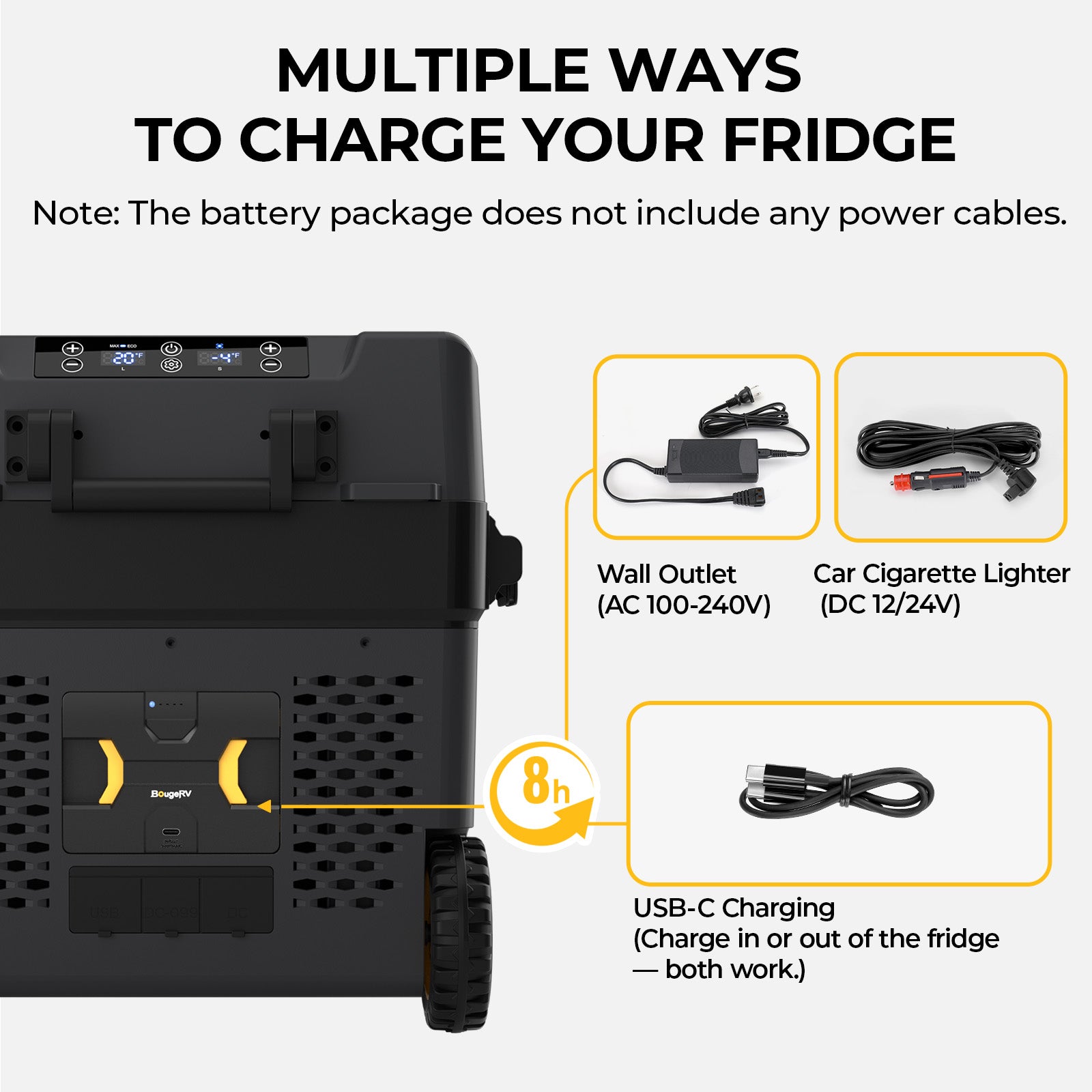

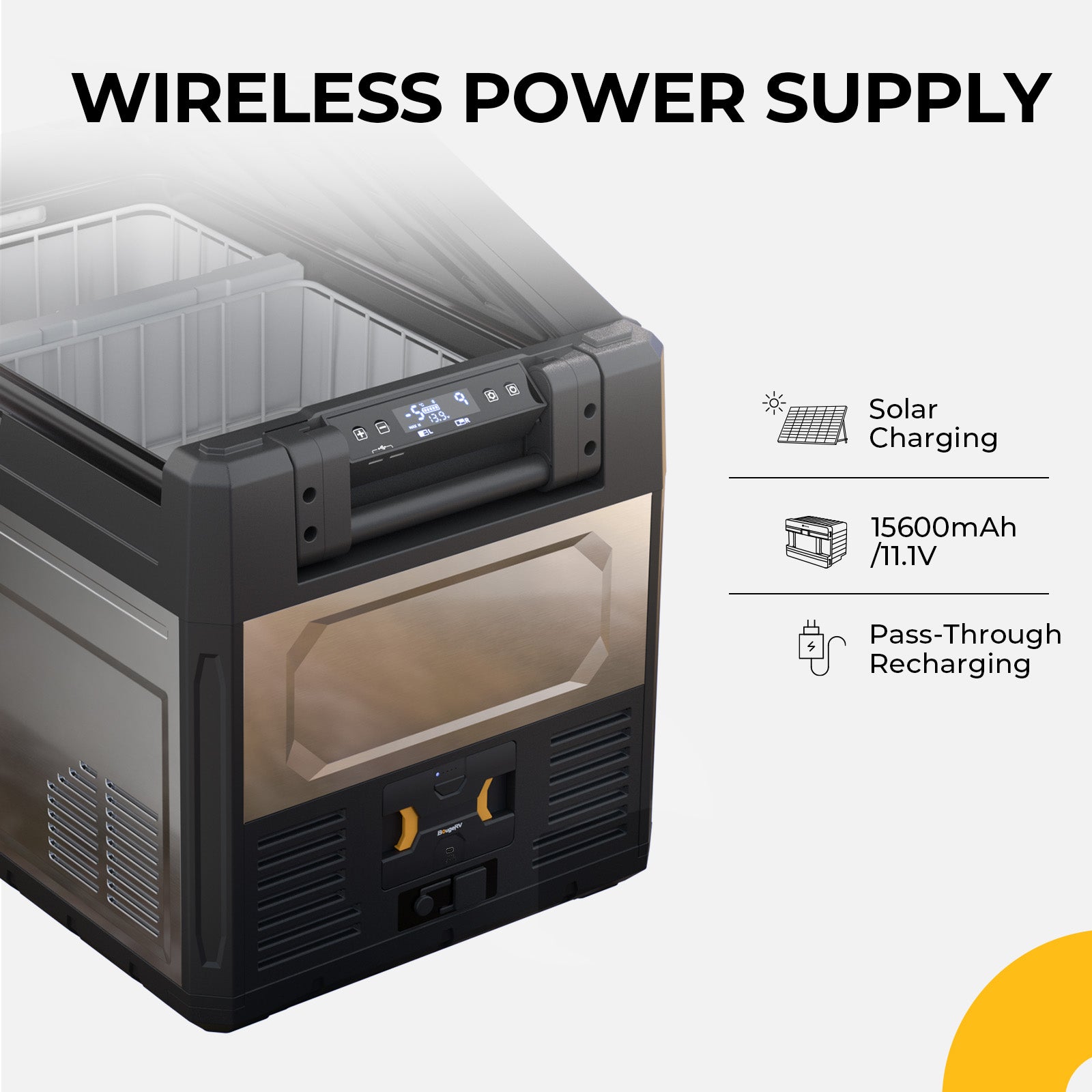

Charge methods: You can charge it in a portable refrigerator (DC 12/24V and AC 100-240V) or solar panel (12-50V). It is suggested to switch off the refrigerator when charging the battery. And place the refrigerator in a cool place to dissipate heat.
Quick charge: Use a 12V/24V adapter to charge the battery for about 3.5 hours to fully charge.
!!! Warning: Do not disassemble the battery!

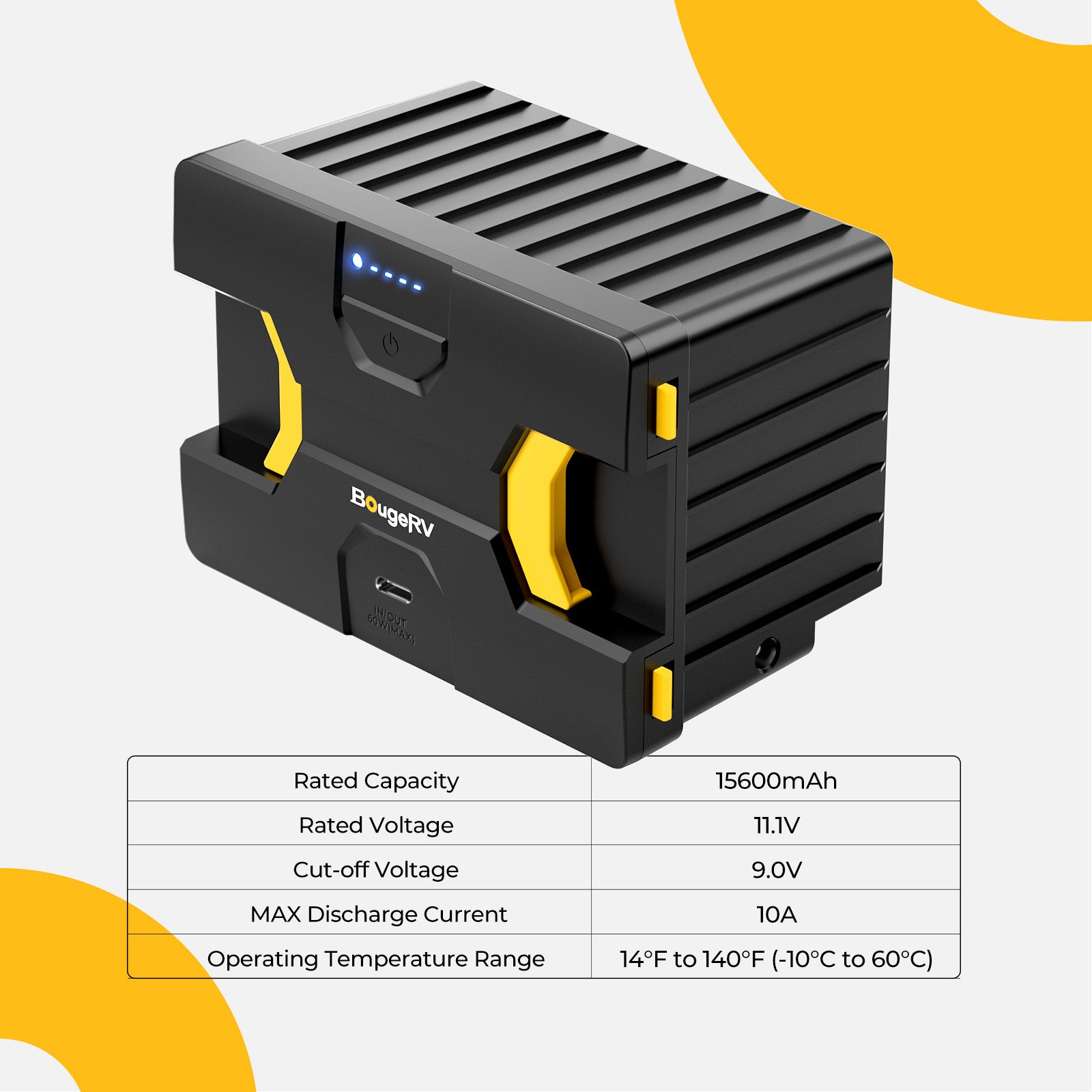

| SKU | E0404-17309 | Product Type | 12V Refrigerator |
|---|---|---|---|
| Type: | pluggable | Rated CapacityT | 15.6Ah |
| Nominal Voltage | 11.1V | Open Voltage | 10.8V~11.7V |
| Cut-off Voltage | 8.0V | Charge Voltage | 12.6V |
| Standard Charge Current | 3120mA | Standard Discharge Current | 3120mA |
| Max Charge Current | 7800mA | Max Continuous Discharge Current | 10000mA |
| Operating Temperature | Charging: 50℉~113℉
Discharge: -4℉~140℉ | Storage Temperature | -4℉~86℉ |
| Certificates | CB | Compatible Fridge Model | BougeRV CR35 ,CR45, CR55, ED35, ED45 and ED55 refrigerators. |
| SKU | E0404-17309 | Product Type | 12V Refrigerator |
|---|---|---|---|
| Type: | pluggable | Rated CapacityT | 15.6Ah |
| Nominal Voltage | 11.1V | Open Voltage | 10.8V~11.7V |
| Cut-off Voltage | 8.0V | Charge Voltage | 12.6V |
| Standard Charge Current | 3120mA | Standard Discharge Current | 3120mA |
| Max Charge Current | 7800mA | Max Continuous Discharge Current | 10000mA |
| Operating Temperature | Charging: 50℉~113℉
Discharge: -4℉~140℉ | Storage Temperature | -4℉~86℉ |
| Certificates | CB | Compatible Fridge Model | BougeRV CR35 ,CR45, CR55, ED35, ED45 and ED55 refrigerators. |
| SKU | E0404-17308 |
|---|---|
| Type: | pluggable |
| Nominal Voltage | 11.1V |
| Cut-off Voltage | 8.0V |
| Standard Charge Current | 3120mA |
| Max Charge Current | 7800mA |
| Operating Temperature | Charging: 50℉~113℉ Discharge: -4℉~140℉ |
| Certificates | CB |
| Product Type | 12V Refrigerator |
| Rated CapacityT | 15.6Ah |
| Open Voltage | 10.8V~11.7V |
| Charge Voltage | 12.6V |
| Standard Discharge Current | 3120mA |
| Max Continuous Discharge Current | 10000mA |
| Storage Temperature | -4℉~86℉ |
| Compatible Fridge Model | BougeRV CR35 ,CR45, CR55, ED35, ED45 and ED55 refrigerators |
